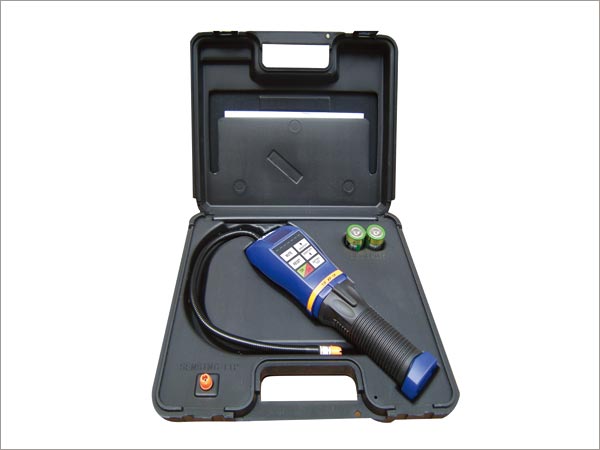

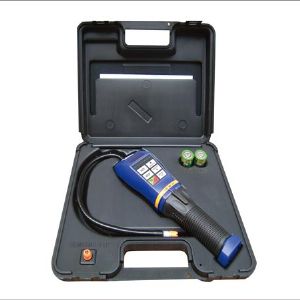

HS-6640 SF6 leak detector
The sulfur hexafluoride gas leak detector is a newly designed product of our company. The instrument is mainly used in electric power, railway, electrical appliance manufacturing, chemical, fire-fighting equipment and atomic physics research departments to be filled with sulfur hexafluoride or other halogen gases (such as: fluorine, chlorine, bromine, iodine and 1211, chloroform, Freon F11). , F12, F13, F22, etc., equipment and containers for leak detection, can quickly and accurately qualitative and quantitative leak detection.
Main feature
1. It has the characteristics of high sensitivity, good stability, fast response, no poisoning of the probe and no toxic gas.
2. The liquid crystal display gas concentration makes the instrument reading more convenient and accurate. When the air contains different concentrations of sulfur hexafluoride gas or other halogen gases, the degree of ionization of the mixed gas will also be different under the action of high frequency electromagnetic fields.
The main technical parameters
1. Measurement range (SF6): 10ˉ8~10ˉ2 (volume ratio)
2, response time: no more than 3 seconds (10 ˉ 4 gas)
3, indication mode: LCD digital quantitative indication and sound, optical signal alarm
4, vacuum hose: 4 meters
5, continuous time: no more than 4 hours
6, power: AV220V, 50Hz
7, ambient temperature: 5 ~ 40 ° C
8, relative humidity: no more than 85%
9, power: 270W
10, external dimensions: 510 × 330 × 480mm (W × D × H)
11, weight: 35Kg
