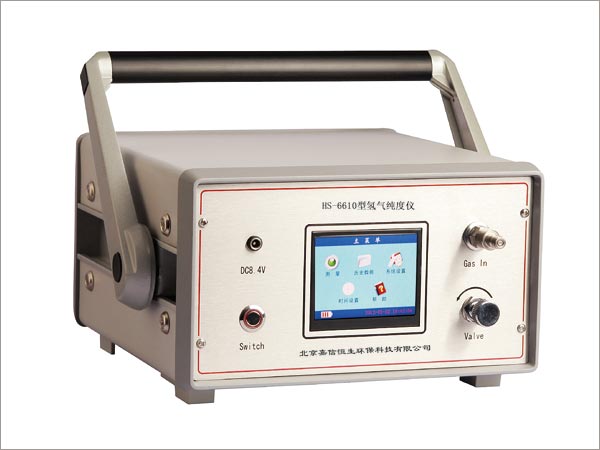

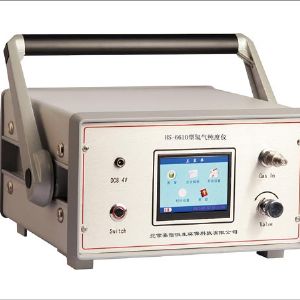

HS-6610 Hydrogen Purity Meter
The purity analyzer adopts the principle of thermal conductivity, and the structure is exquisite and compact, and the human-computer interaction interface is friendly. The built-in pressure regulator, combined with the needle valve and mass flow meter, not only ensures measurement accuracy, but also takes into account gas loss. The optional three-range measurement function not only monitors the purity of hydrogen in the normal operation of generators and hydrogen production stations, but also monitors the concentration of replacement gases before and after generator maintenance.
The main technical parameters
Measure:
Air H2: 0~100% Typical accuracy ±0.2%FS
CO2 (N2) in Air: 0~100%
H2: 0~100% in CO2(N2)
Repeatability: ≤±1%FS
Resolution: 0.01%
Response speed: T90 ≤ 5S
Working flow: 0.2~0.4L/min
Sample gas pressure: <1.0Mpa
Ambient temperature: -15~+50°C
Ambient humidity: ≤80%
Display: LCD, graphic menu
Power source: Built-in lithium battery, AC and DC
Charging time: 4 hours or more (with automatic charging protection)
Use time: 10 hours or more
Storage capacity: >100 normal data
Size: about 275mm × 300mm × 140mm
Weight: about 4kg
If the unit is replaced with nitrogen, please indicate in the order contract.
