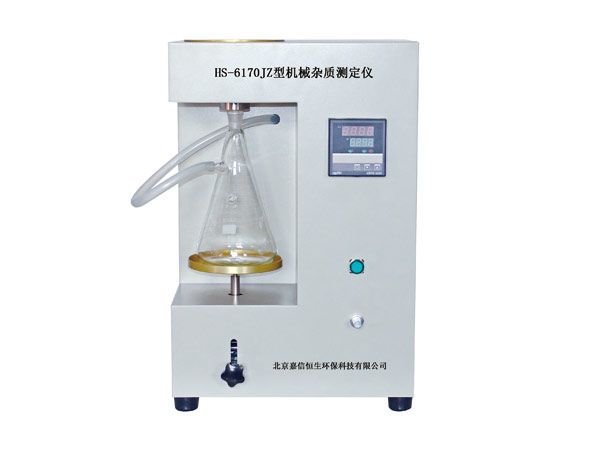

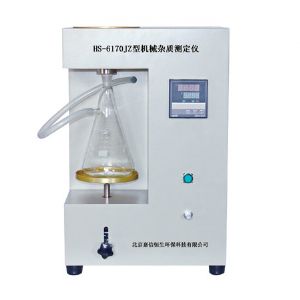

HS-6170JZ type mechanical impurity analyzer
The HS-6170JZ type mechanical impurity analyzer is designed according to the GB/T511-88 standard, and the mechanical impurities are determined by the gravimetric method.
Main feature
1. The instrument interface uses liquid crystal Chinese character display, menu click input command, high temperature precision, stable and reliable.
2, automatic temperature control, automatic opening of the vacuum pump, saving manpower, easy to operate.
The main technical parameters
1, temperature control range: room temperature ~ 100 ° C
2, heating plate power: 600W
3, funnel rack power: 160W
4, vacuum pump power: 180W
5, power: AC220 ± 22V, 50 ± 1Hz
6. Dimensions: 370×310×370mm (H×W×D)
7, weight: 20Kg
