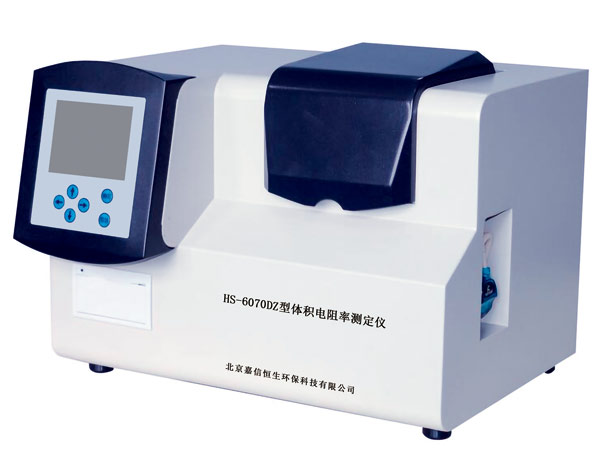

HS-6070DZ volume resistivity meter

This instrument implements the DL421-91 standard design, which is mainly used to measure the volume resistivity of insulating oil, and also to measure the insulation resistance of other objects.

Main feature

1. Portable structure design, can test the 2.5mm clearance oil cup.

2, with light weight, small size and other characteristics, suitable for on-site use.

3. The new AVR single-chip microcomputer is used as the core microprocessor, which has fast running speed and strong anti-interference ability.

4, LCD picture display, key operation Chinese characters prompt, can not lose the real clock.

5, automatic printing test results, high measurement accuracy, stable and reliable.

6, can be heated to 90 ° C can be used for high temperature insulating oil test.

The main technical parameters

1, test voltage: 500V.DC

2. Test range: 107～1015Ω·cm

3, repeatability: ρ × 1012 Ω · cm ρ < 1 ≯ 15%

ρ×1012 Ω·cm ρ>1 ≯ 25%

4, temperature control range: 20 ° C (low temperature), 90 ° C (high temperature)

5, temperature control accuracy: ± 0.3 ° C

6, test electrode cup: 3

7, power: AC220 ± 22V, 50 ± 1Hz

8, power: 300W

9, dimensions: 370 × 260 × 250mm (H × W × D)

10, weight: 8Kg

Selection guide

1. Optional advanced automatic measuring instrument.
