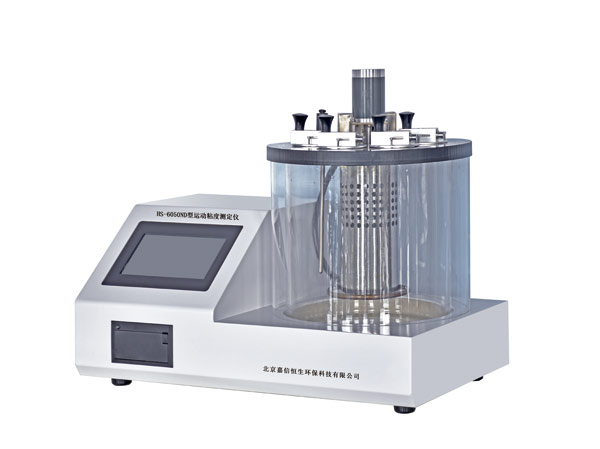

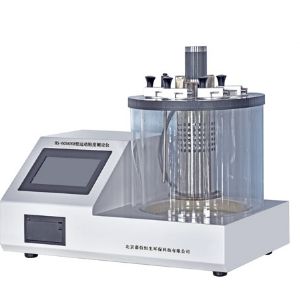

HS-6050ND type kinematic viscosity tester

This instrument is designed according to GB/T265-88 standard and is used to determine the kinematic viscosity of liquid petroleum products.

Main feature

1, LCD screen, Chinese characters display, clear and clear, easy to operate.

2. The keyboard sets the viscometer constant and the control temperature value, and the instrument has a memory function.

3, using imported sensors, software temperature control technology, wide temperature control range, high temperature control accuracy.

4, do not power down the calendar clock, boot automatically display the current time.

5, manual detection, timing, calculation of kinematic viscosity results.

6, using fixed card capillary clamp, flexible and convenient operation, reliable clamping, not loose.

7, the new lighting system, good perspective, no flashing, soft light, long life.

The main technical parameters

1, test sample hole: manual 4

2, temperature control range: room temperature ~ 100 ° C

3. Temperature electrode: Pt100

4, temperature control accuracy: ± 0.01 ° C

5, power: AC220 ± 22V, 50 ± 1Hz

6, power: 600W

7, the external dimensions: 530 × 380 × 550mm (H×W×D）

8, weight: 10Kg

Selection guide

1. Optional advanced automatic measuring instrument.
