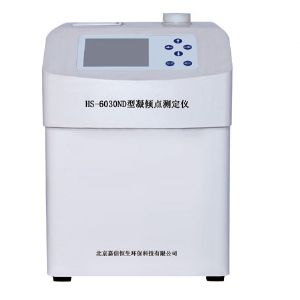

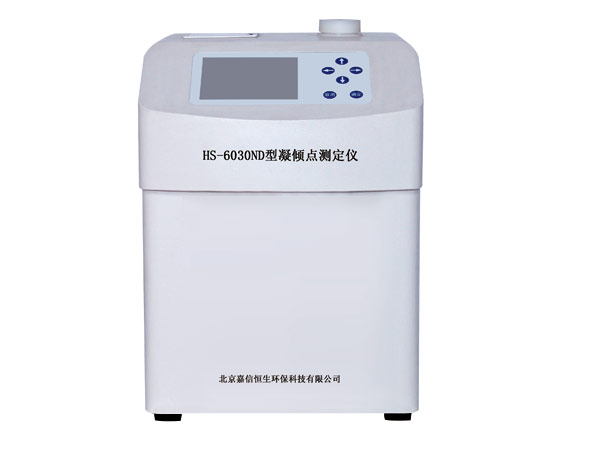

HS-6030ND type freezing point automatic measuring instrument

This instrument is designed according to GB/T510-83 standard and is mainly used to determine the freezing point value of transformer oil and other light oil. Adopt semiconductor cooling method.

Main feature

1. High-precision cooling control system, which can select the pour point or the freezing point measurement method through the keyboard.

2, does not power down the calendar clock, automatically display the current date and time.

3, automatic cooling, automatic control, automatic detection, automatic printing of the freezing point results.

4, can form wireless network communication, and information sharing with the laboratory center computer (optional).

The main technical parameters

1, cooling speed: 10min> 40 ° C

2, cooling depth: -60 ° C

3, repeatability: ≤ 1 ° C

4, temperature control accuracy: ± 0.1 ° C

5. Cooling water pressure: 0.5kg/cm2

6, power: AC220 ± 22V, 50Hz ± 1

7, power: 1000W

8. Dimensions: 420×450×440mm (H×W×D)

9, weight: 10Kg

Selection guide

1. Optional advanced automatic measuring instrument.
