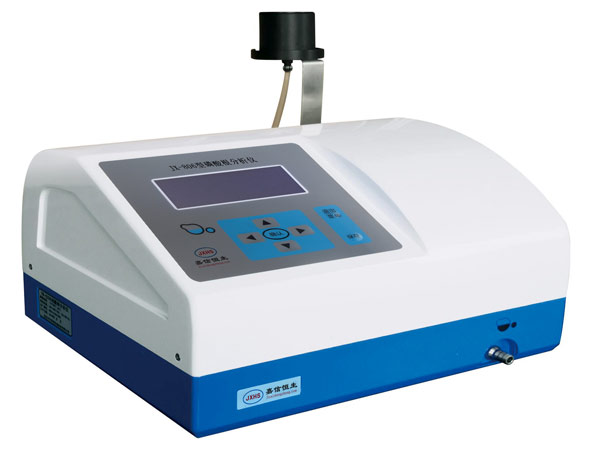

JX-806 phosphate analyzer
Application field
It is widely used in the analysis of ion content in electric power, chemical industry, metallurgy, water treatment, pharmaceutical, industrial wastewater and biochemical water.
Main feature
1, Chinese LCD display, full film touch button.
2, advanced 32-bit embedded microcontroller technology, advanced patch technology and integrated design.
3. The light source adopts imported monochromatic photodiode. Excellent monochrome performance, concentrated energy, stable, and low power consumption.
4. The receiving photocell adopts imported components. The stability and accuracy of the measurement are fully guaranteed.
5. The photometer adopts the new patented technology of fuzzy PID constant temperature control to ensure the stability of measurement.
6. Waterproof case, calibrate with blank water without any reagent. The calibration process is greatly simplified and the work efficiency is improved.
7, unique selection of multi-point curve calibration function. Greater assurance of the accuracy of the instrument over the range.
8, password protection function, historical data query function.
The main technical parameters
1, colorimetric method: molybdenum vanadium yellow
2, measurement range: 0 ~ 20mg / L, 0 ~ 50mg / L
3. Resolution: 0.01mg/L
4. Precision: ±2% F.S
5, repeatability: no more than 1%
6. Stability: ±1%F.S/4h
7, power supply: AC220 ± 22V, 50 ± 1Hz
8, power: 30W
9. Dimensions: 400×180×260 (H×W×D)
10, weight: 4kg
