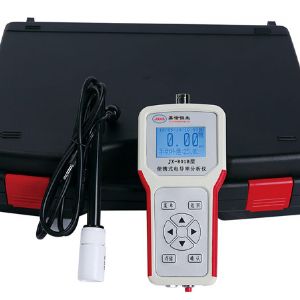

JX-801B Portable Conductivity Analyzer

Application field

Power, petrochemical, biomedical, sewage treatment, environmental analysis, mining and smelting industries.

Main feature

1. It adopts 3-digit liquid crystal display, which is beautiful in appearance and clear in display.

2, four-range range, automatic switching, automatic carry display, simple operation, high measurement accuracy.

3. The electrode constant and the solution temperature coefficient can be set.

4, with automatic temperature compensation.

5. Double row digital display, showing conductivity value and temperature value at the same time.

6, powered by No. 5 dry battery, easy to carry, can be used in the field.

The main technical parameters

1, the measurement range

Cond: k = 0.01 0.000 ~ 2.000 μS / cm, 0.00 ~ 20.00 μS / cm

K=0.10 0.00～20.00μS/cm, 0.0～200.0μS/cm

k=1.00 0.0～200.0μS/cm, 0～2000μS/cm

k=10.0 0～2000μS/cm, 0～20000μS/cm

Temp: 0.0 ° C ~ 80 ° C

2. Resolution: Cond: 0.001μS/cm Temp: 0.1°C

3, precision Cond: 0.01 Temp: 0.1

4. Stability: ±0.15%F.S/4h

5. Indication error: ±0.3% F.S

6, the electrode constant: 0.001 ~ 15.0 cm-1 is set by software

7, temperature electrode: Pt1000

8, temperature compensation: 0 ~ 60 ° C

9, power supply: AC220 ± 22V, 50 ± 1HZ

10, power: 1W

11. Dimensions: 135×75×25 mm (H×W×D)

12. Weight: 0.3kg

Selection guide

1. It can be equipped with three constant conductivity electrodes of k=0.1, 1,10.
