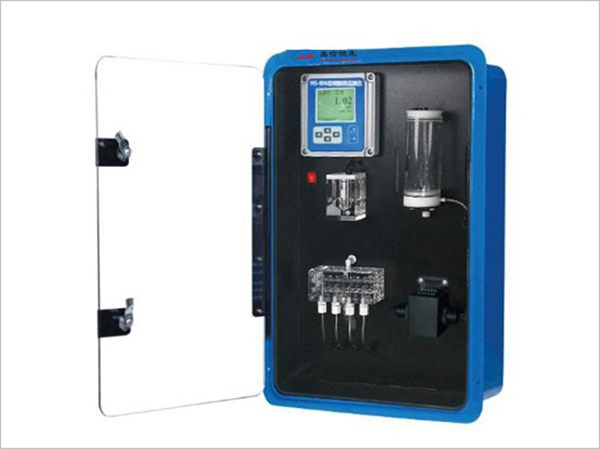

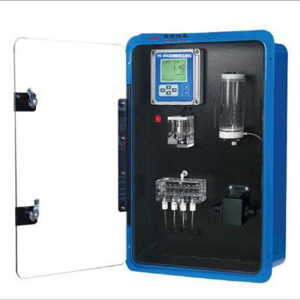

HS-806 phosphate monitor
Application field
Low-phosphorus meters are widely used in online monitoring of boiler water for electric power, and high-phosphorus meters are widely used in process monitoring of sewage treatment.
Main feature
1, 1-6 channels can be selected to save costs.
2, flow calibration, eliminate pollution and improve accuracy.
3, the use of imported high-precision solenoid valve, long service life, accurate injection and dosing, high measurement accuracy, fast response.
4, monochrome cold light source, long service life, good stability.
5, multi-channel high-precision programmable current signal output, suitable for subsequent automatic dosing or data acquisition systems.
6, power-off storage function, data storage for more than 15 years.
7, compact structure, disc installation, easy to use and maintain.
8, waterproof and dustproof design, suitable for outdoor use.
9. Two-point standard calibration can be automatically performed according to the user-set time period to reduce maintenance.
The main technical parameters
1. Measurement principle: Phosphorus, molybdenum and yellow photoelectric photoelectric colorimetry
2. Range: 0~2000μg/L, 0.00~10.00mg/L, 0.00~20.00mg/L
3. Resolution: 1μg/L, 0.01mg/L, 0.01mg/L,
4. Precision: ±1% F.S
5, repeatability: ± 1% F.S
6. Stability: Drift ≤±1%F.S/24h
7, response time: <4min
8, sampling period: about 3min / channel
9, water sample conditions Flow: 10 ~ 40L / h Temperature: 10 ~ 45 ° C Pressure: 10 ~ 100KPa Impurity: solid matter is less than 5 microns, and no glue appears
10, the ambient temperature: 5 ~ 45 ° C (above 40 ° C, the accuracy is reduced)
11, environmental humidity: <85% RH
12, reagent consumption: each 3L / month, a total of 1
13. Output signal: Any setting within the range of 0~22mA, each channel is independent
14, alarm signal: buzzer, relay normally open contact
15, communication interface: RS485 or 232 (optional)
16, protection level: IP65
17, data preservation: 15 years
18, power: 220V ± 22V, 50Hz ± 1Hz
19. Power: 50W
20, size: 720 × 460 × 300mm (H × W × D)
21, opening size: 665 × 405mm (H × W)
22, weight: 20kg
Selection guide
1. Optional monitor with 1-6 channels of any channel.
2. Optional three-range monitors are available.
3, the installation method can be installed in a disc type or wall-mounted.
