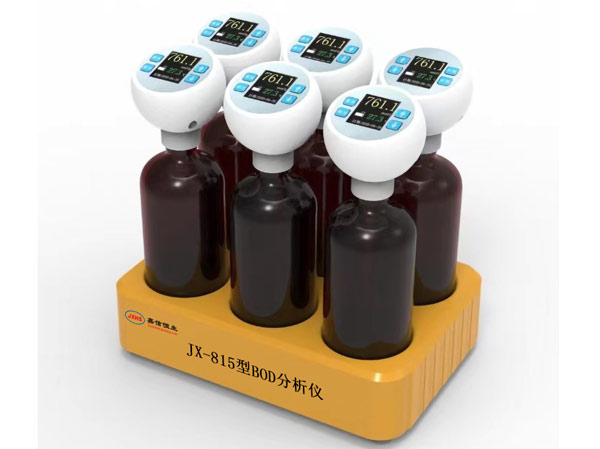

JX-815 BOD Analyzer

Application field

The instrument has a built-in microcomputer to realize man-machine dialogue, simple operation and perfect functions. It can be widely used in petroleum, chemical, pharmaceutical, environmental protection, colleges and universities, materials science and other fields. It is an indispensable analytical test instrument for scientific research, production and teaching.

The main technical parameters

1, ambient temperature: 0 ° C ~ 40 ° C

2. Measuring method: differential pressure method

3. Measurement range: 0~1000mg/L (diluted when BOD5 value exceeds measurement range)

4, batch processing volume: 8 water samples each time

5, accuracy: in line with the national standard GB7488-87 standard (glucose glutamic acid standard solution BOD5 value in the range of 180mg / L ~ 230mg / L)

6. Display: The BOD5 value (mg/L) of the sample can be read directly from the pressure gauge scale.

7. Culture temperature: 20 °C ± 1 °C

8, power: AC36V

9, power consumption: 18W

10, size: 400 × 270 × 350mm (H × W × D)

11, weight: 5kg

Selection guide

1. Optional instruments with water output of 20L/h, 30L/h, and 40L/h.

2. Tap water, demineralized water and distilled water can be selected as the influent water source.
