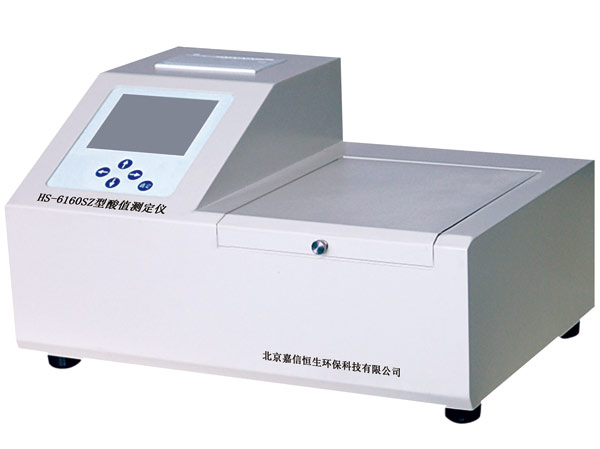

HS-6160SZ type acid value automatic measuring instrument

The instrument is designed according to GB7599-87 and GB/T264-83 standard, and is used for automatic determination of acid value of transformer oil and turbine oil.

Main feature

1. Adopt the principle of neutralization titration method, use the microcomputer to control the filling, titration, stirring and judge the end point of the titration automatically at normal temperature. The liquid crystal screen displays the measurement result and can print out.

2. The special reagent bottle is used to hold the extract and the neutralizing solution. The reagent is not in contact with air during use, avoiding the solvent volatilization and the influence of CO2 in the air; the user does not touch the solvent by hand, and reduces the organic solvent and chemical pair. The harm of the human body.

3, the instrument is simple to operate, using large-screen LCD display, Chinese menu selection, the user only needs to select the menu function, press the screen prompt to enter the relevant data and confirm, the instrument can automatically complete the whole process of acid value determination.

4. The analyzer can also choose to measure only one sample or continuously measure 2-6 samples as needed.

5, can choose to continuously measure 1 to 6 oil samples according to needs, it completely replaces the manual operation.

The main technical parameters

1, measuring cup number: 1 to 6

2. Measurement range: 0.001 ~ 0.3mgKOH/g

3. Resolution: 0.001 mgKOH/g

4. Repeatability: 0.003mgKOH/g

5. Measurement error: ±0.005mgKOH/g

6, power: AC220 ± 22V, 50 ± 1Hz

7, power: 800W

8. Dimensions: 410×310×270mm (H×W×D)

9, weight: 12Kg
