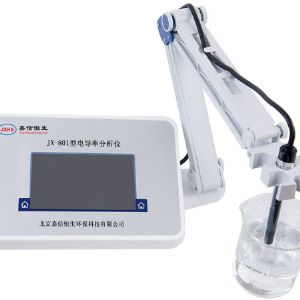

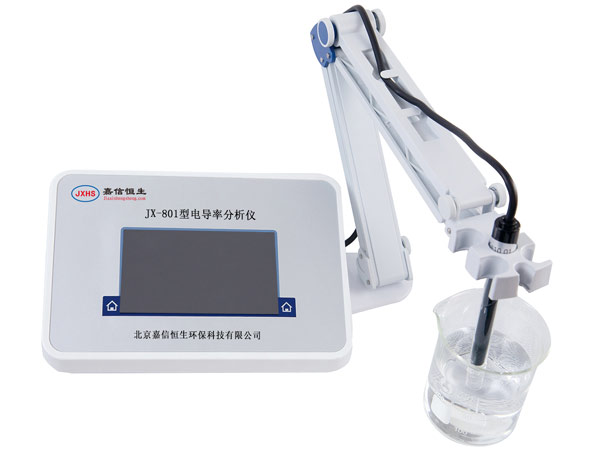

JX-801 Conductivity Analyzer

Application field

Widely used in petrochemical, biomedical, sewage treatment, environmental analysis, mining and smelting industries and universities and research institutes. If a suitable constant conductivity electrode is used, it can also be used to measure the conductivity of pure water or ultrapure water in electronic semiconductors, nuclear power industry and power plants.

Main feature

1. It adopts 3-digit liquid crystal display, which is beautiful in appearance and clear in display.

2, four-range range, automatic switching, automatic carry display, simple operation, high measurement accuracy.

3. The electrode constant and the solution temperature coefficient can be set.

4. With manual temperature compensation and automatic temperature compensation.

5, double row digital display, showing the conductivity (or potential) value and temperature value.

The main technical parameters

1, the measurement range

Cond: k = 0.01 0.000 ~ 2.000 μS / cm, 0.00 ~ 20.00 μS / cm

K=0.10 0.00～20.00μS/cm, 0.0～200.0μS/cm

k=1.00 0.0～200.0μS/cm, 0～2000μS/cm

k=10.0 0～2000μS/cm, 0～20000μS/cm

Temp: 0.0 ° C ~ 60 ° C

2. Resolution: Cond: 0.001μS/cm Temp: 0.1°C

3, precision Cond: 0.1 Temp: 0.1

4. Stability: ±0.15%F.S/4h

5. Indication error: ±0.3% F.S

6, the electrode constant: 0.001 ~ 15.0 cm-1 is set by software

7, temperature electrode: Pt1000

8, temperature compensation: 0.0 ° C ~ 60 ° C

9, power supply: AC220 ± 22V, 50 ± 1HZ

10, power: 6W

11. Dimensions: 200×210×70mm (H×W×D)

12. Weight: 1.5kg

Selection guide

1. Electrodes with four constants of k=0.01, 0.1, 1, and 10 can be selected.

2. Optional high-end JX-801A conductivity analyzer.
