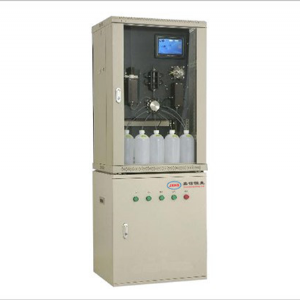

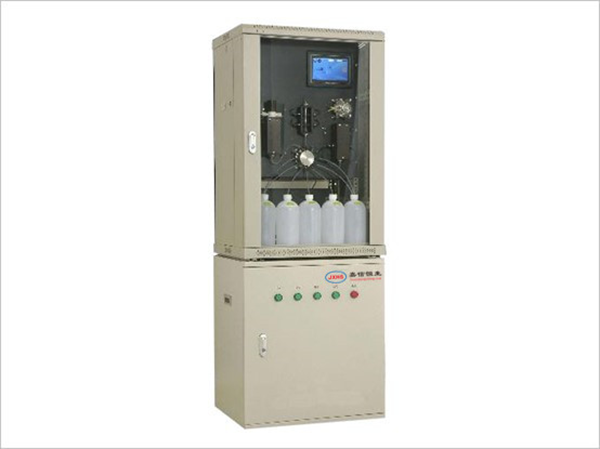

HS-815 BOD monitor

The BOD online monitor can be used to monitor the biological oxygen consumption of sewage organic matter. The measurement method is simple and no chemical needs to be added. The sludge extracted from the treatment plant or the sludge recovered from the sludge wave system can decompose the organic matter in the sewage and measure the oxygen demand of the process.

Main feature

1. On-site continuous monitoring of sensor technology.

2, fast response, no lag time.

3. Test accurate and effective suppression of interference technology.

4. The sensor is directly immersed in the water sample to be tested, without sample transportation and pretreatment.

5, fast response, real real-time continuous monitoring.

6, precision optical components, accurate testing in the UV visible band.

7, automatic air purging, can greatly extend the system's continuous running time, almost maintenance-free.

8, using photometric test, saving a lot of reagent consumption.

The main technical parameters

1. Measurement method: colorimetric determination

2, test range: (0-10) mg / l, (0-100) mg / l, (0-500) mg / l three range is optional

3. Detection of the lower line: 8mg/l

4, resolution: <1mg / l

5. Accuracy: standard solution <10%; water sample <15%

6, reproducibility: <5%

7, digestion temperature: 165 ° C, can be set

8, digestion time: 15min, can be set

9, no fault running time: ≧ 720h / time

10. Range drift: ±5% F.S.

11, sample interval: continuous, 1 hour, 2 hours. . . 24 hours, trigger

12, calibration interval: manually or according to the selected interval and time automatically (1-7 days)

13. Cleaning interval: manually or automatically at the selected interval and time (1-7 days)

14, maintenance interval: 〉 1 month, about 1 hour each time

15. Reagent consumption: about 358 samples per reagent

16, man-machine interface: 7 inch, 70,000 color, 800 * 480 resolution, TFT true color touch screen

17, printing: reserved printer interface, external industrial micro-printer (optional)

18, storage: 20,000 data, power loss is not lost, full automatic coverage of early data (additional 40,000 data)

19, communication interface: 1 way RS232 digital interface or RS485, support MODBUS communication protocol or custom protocol

20, pre-treatment system: self-cleaning, backflushing, precision filtration function, to ensure that the sample has a good representative, but also avoid the suspended particles blocking the pipeline to ensure the continuity of the data. (optional)

21, size: 900 × 600 × 450 (mm)

22, weight: 50kg

23, power: AC220V ± 20%, 50Hz ± 1%

24, power: 300W

25, ambient temperature: 5 ~ 40 ° C

26, environmental humidity: ≤ 85%
